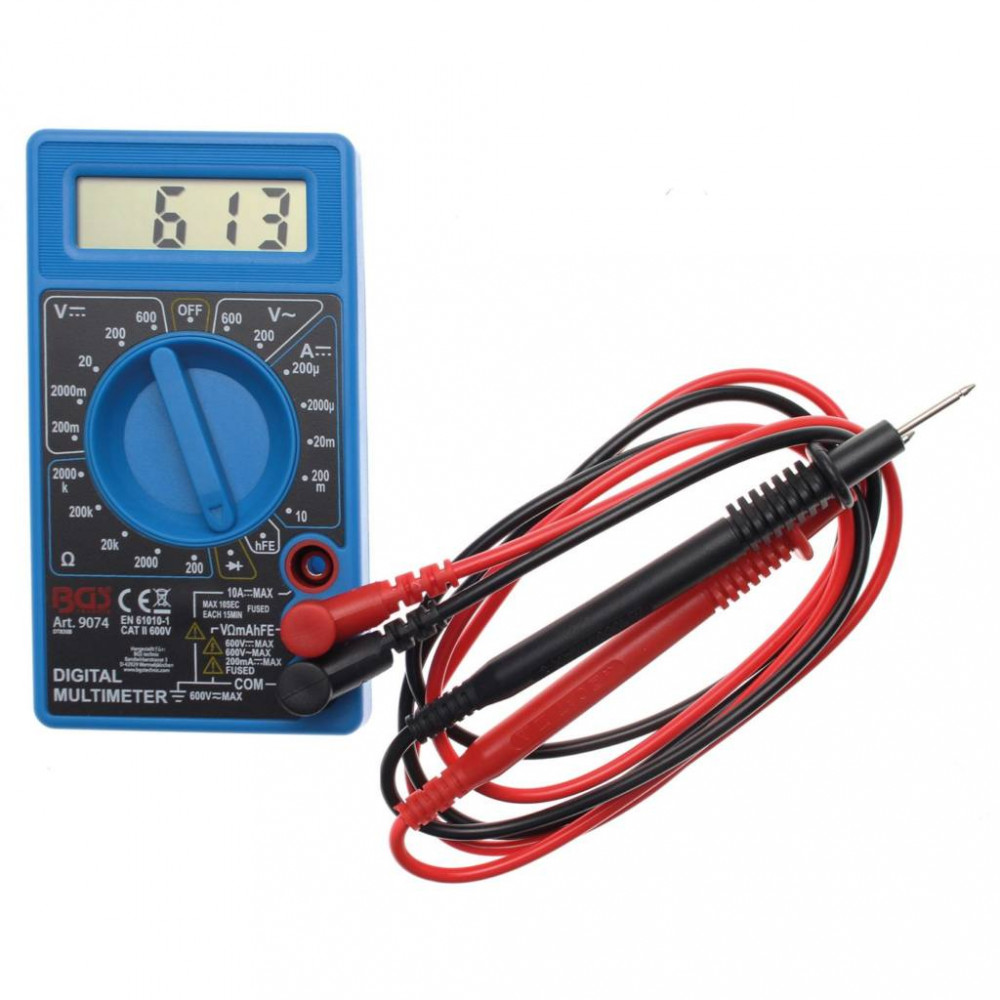

Name: BGS technic Digitálny multimeter | 3 1/2 miestny (BGS 9074)
Brand: BGS technic
SKU: 9074
Price: 15.41 EUR
Availability: InStock

suitable for measurements in CAT II area
3 1/2 digit, 7 segments, 12.5 mm LCD
indication for overflow, polarity and low battery voltage
measuring ranges for resistance, AC voltage, DC voltage, diode voltage drop and hFE transistor measurements
operating temperature: 10°C ~ 40°C, 0 ~ 75% relative humidity
power supply: 2x 1.5 V AAA battery
weight: 140 g (incl. battery)

DC voltage measuring ranges:

200 mV, resolution: 10 µV, accuracy: ±0.5% +10 digit
2000 mV, resolution: 1 mV, accuracy: ±1% +5 digit
20 V, resolution: 10 mV, accuracy: ±1% +5 digit
200 V, resolution: 100 mV, accuracy: ±1% +5 digit
600 V, resolution: 1 V, accuracy: ±1.2% +5 digit

AC voltage measuring ranges:

200 V, resolution: 10 mV, accuracy: ±0.5% +10 digit
600 V, resolution: 1 V, accuracy: ±0.5% +10 digit

DC current measuring ranges:

200 uA, resolution: 100 nA, accuracy: ± 1.8% +2 digit
2000 uA, resolution: 1 µA, accuracy: ± 1.8% +2 digit
20 mA, resolution: 10 uA, accuracy: ±1.8% +2 digit
200 mA, resolution: 100 µA, accuracy: ± 2% + 2 digit
10 A, resolution: 10 mA, accuracy: ±2% +10 digit

resistance measuring ranges:

200 Ohm, resolution: 0.1 mOhm, accuracy: +/-1% +10 digit
2000 Ohm, resolution: 1 Ohm, accuracy: +/-2% +4 digit
20 KOhm, resolution: 10 Ohm, accuracy: +/-2% +4 digit
200 KOhm, resolution: 100 Ohm, accuracy: +/-2% +4 digit
2000 KOhm, resolution: 1 KOhm, accuracy: +/-2% +4 digit
