BGS technic Automobilový digitálny multimeter s USB rozhraním (BGS 63401)

• Podrobnosti
• Údajov

Podrobnosti

• ideal automotive measuring tool
• suitable for 2 and 4-stroke engines
• illuminated 3 5/6 digit display
• USB port for connection to PC
• auto-range, automatically selects the range size
• relative mode, enables differential measurement
• data hold function, freezes the measured value
• overload indication
• low battery indicator

measuring ranges:

• DC voltage: 6 V - 60 V - 600 V - 1000 V
• AC voltage: 6 V - 60 V - 600 V - 1000 V
• DC current: 60 mA - 600 mA - 6 A - 20 A
• AC current: 60 mA - 600 mA - 6 A - 20 A
• resistance: 600 Ohm - 6 KOhm - 600 KOhm - 6 MOhm - 60 MOhm
• continuity: buzzer sounds under 20 Ohm
• diode: test current approx. 0.8 mA
• capacity: 40 nF to 4000 uF
• temperature: -20 to 400 °C
• frequency: 10 Hz to 10 MHz
• duty cycle: 0.5% to 99.9%
• drive speed: 120 to 20,000 rpm
• dwell: 0° - 90° / 0° - 72° / 0° - 60° / 0° - 45°
• pulse width: 0.5 ms to 20 ms

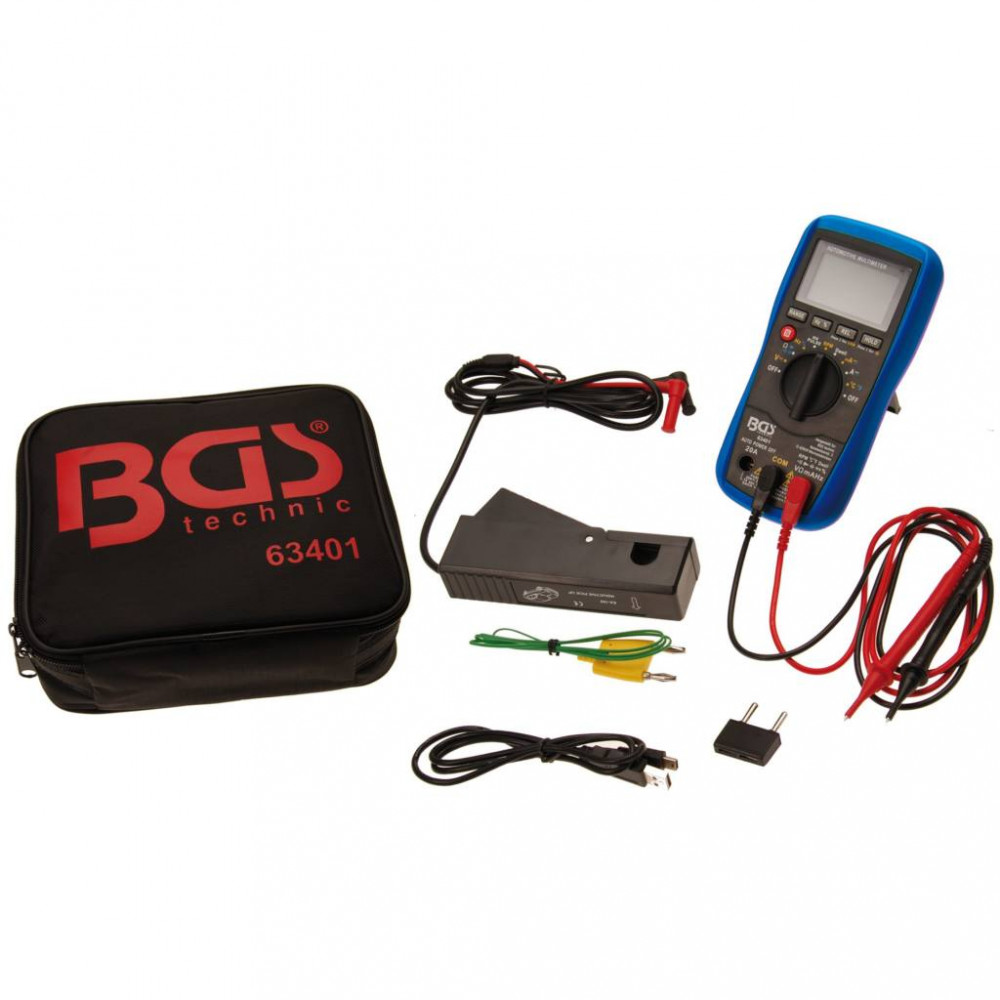

scope of delivery:

• temperature probe
• condenser adaptor
• inductive pick up
• 2 measuring cables
• USB cable
• CD with driver/software
• pouch and 9-V battery

Údajov

Hmotnosť:

700 g/kus
